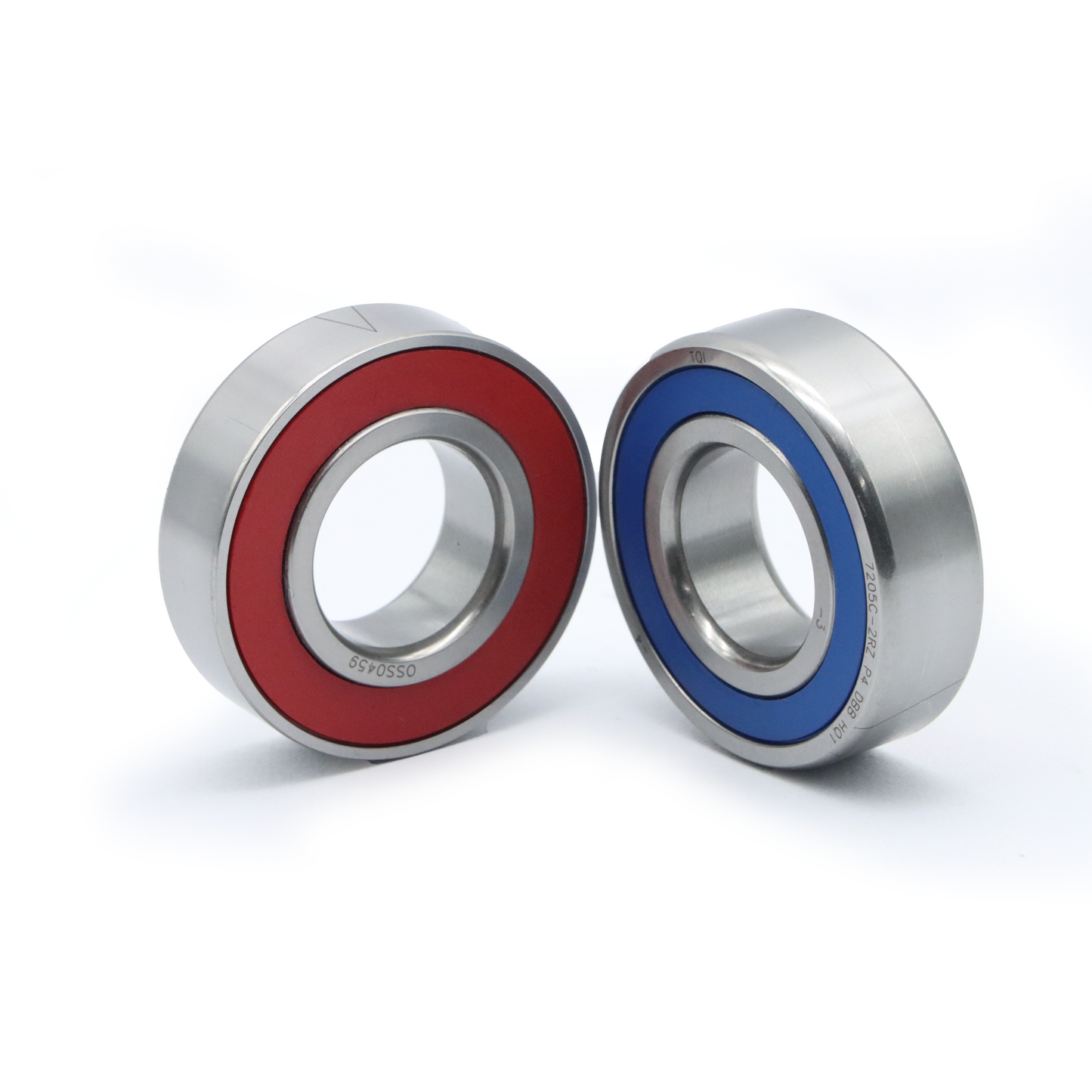

Angular Contact Ceramic Ball Bearing H7001C-2RZ HQ1
Prices are only visible to registered members.
The H7001C-2RZ HQ1 is an advanced hybrid angular contact ball bearing engineered for high-frequency spindle applications. By combining high-carbon chrome steel rings with aerospace-grade Silicon Nitride (Si3N4) ceramic balls, this bearing achieves a limiting speed of 96,000 RPM with grease lubrication. The ceramic ball material offers superior hardness and significantly lower thermal expansion than steel, resulting in reduced friction, lower operating temperatures, and increased stiffness. With a 12mm bore and 28mm outside diameter, it provides a slightly higher load rating (3.8 KN Basic Dynamic Load) than its H7000 counterparts, making it ideal for precision routers and high-speed dental tools.
- Hybrid design with Silicon Nitride (Si3N4) Ceramic Balls
- 12mm Bore x 28mm OD x 8mm Width
- High-speed 2RZ non-contact shielding
- 96,000 RPM Grease Limiting Speed
- Increased 3.8 KN Dynamic Load Rating
- Advanced P4 Grade precision for spindle accuracy
Industry Applications
High-Frequency Electric Spindles
Precision Dental and Surgical Tools
CNC Router and Engraving Spindles
Aerospace Gyroscopes and Centrifuges
Vacuum Pumps and Turbochargers
Micro-Machining Tool Holders
