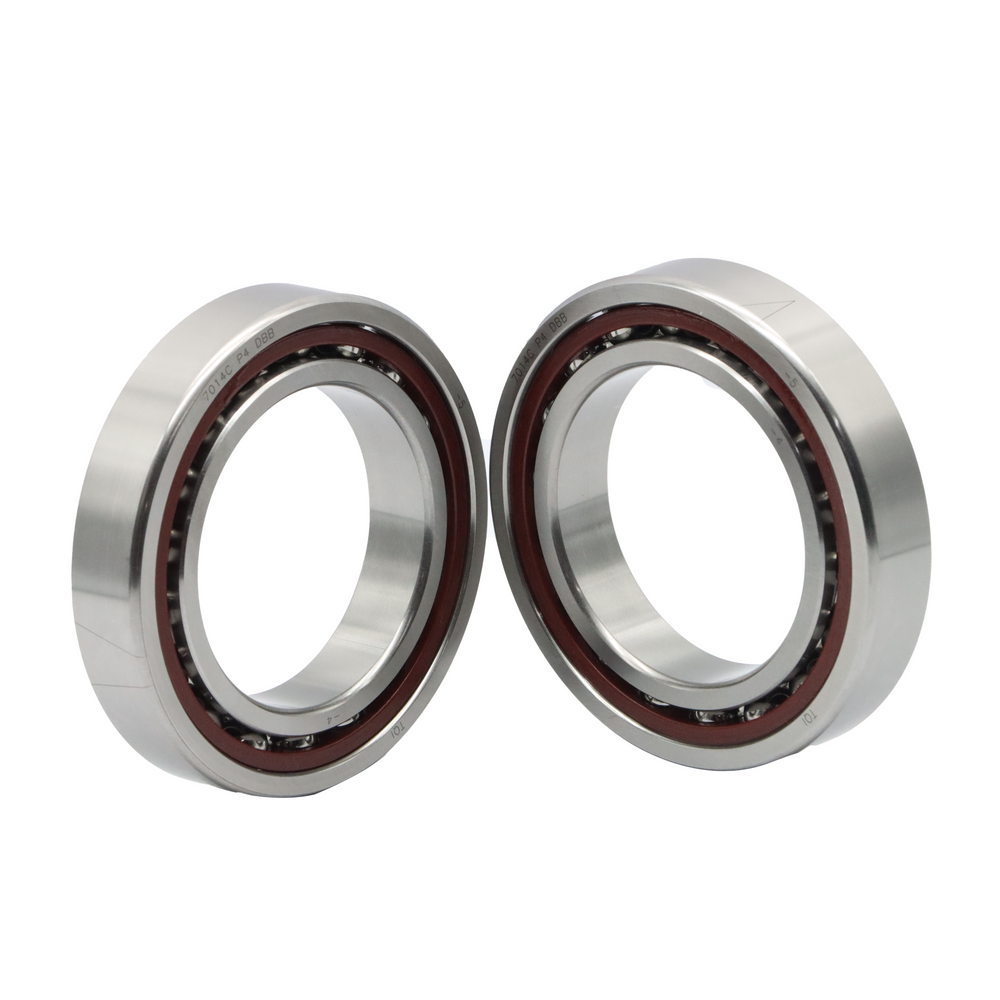

Angular Contact Steel Ball Bearing 7002C-2RZ DBB
Login to See Price
Prices are only visible to registered members.
Technical Specifications
Speed:68100 RPM
Bearing:Angular Contact Steel Ball
Inside Diameter:15 mm
Outside Diameter:32 mm
Width:9 mm
Load Rating:Cr: 4.4 KN / Cor: 2.2 KN
Ball Material:High-Carbon Steel
Ring Material:Hardened Chrome Steel
Weight:2.2
🛡️ Secure
🚚 Fast Delivery
✅ Certified
The Angular Contact Steel Ball Bearing 7002C-2RZ DBB is a precision-engineered component designed to handle demanding industrial conditions. With an inside diameter of 15mm and an ultra-high limiting speed of 68100 RPM (grease), this bearing is optimized for high-speed CNC machines and robotic arm joints. Made from high-grade hardened steel, it provides exceptional durability and rigidity while supporting both radial and axial loads. The 2RZ non-contact seals ensure low friction and protection against contaminants without sacrificing speed.
- High-speed 7002C series steel balls
- Optimized contact angle for axial/radial load support
- Non-contact 2RZ seals for thermal stability
- Precision ground steel rings for low runout
- Compact 15x32x9mm design for space-sensitive integrations
- High-precision DBB configuration compatibility
Technical Specifications
Speed:
68100 RPM
Bearing:
Angular Contact Steel Ball
Inside Diameter:15 mm
Outside Diameter:32 mm
Width:9 mm
Load Rating:
Cr: 4.4 KN / Cor: 2.2 KN
Ball Material:High-Carbon Steel
Ring Material:Hardened Chrome Steel
Weight:2.2
Industry Applications
⚙️
High-Speed CNC Spindles
⚙️
Industrial Robotics and Automation
⚙️
Automotive Precision Components
⚙️
High-Speed Electric Motors
⚙️
Machine Tool Rotating Assemblies
⚙️
Precision Laboratory Equipment
