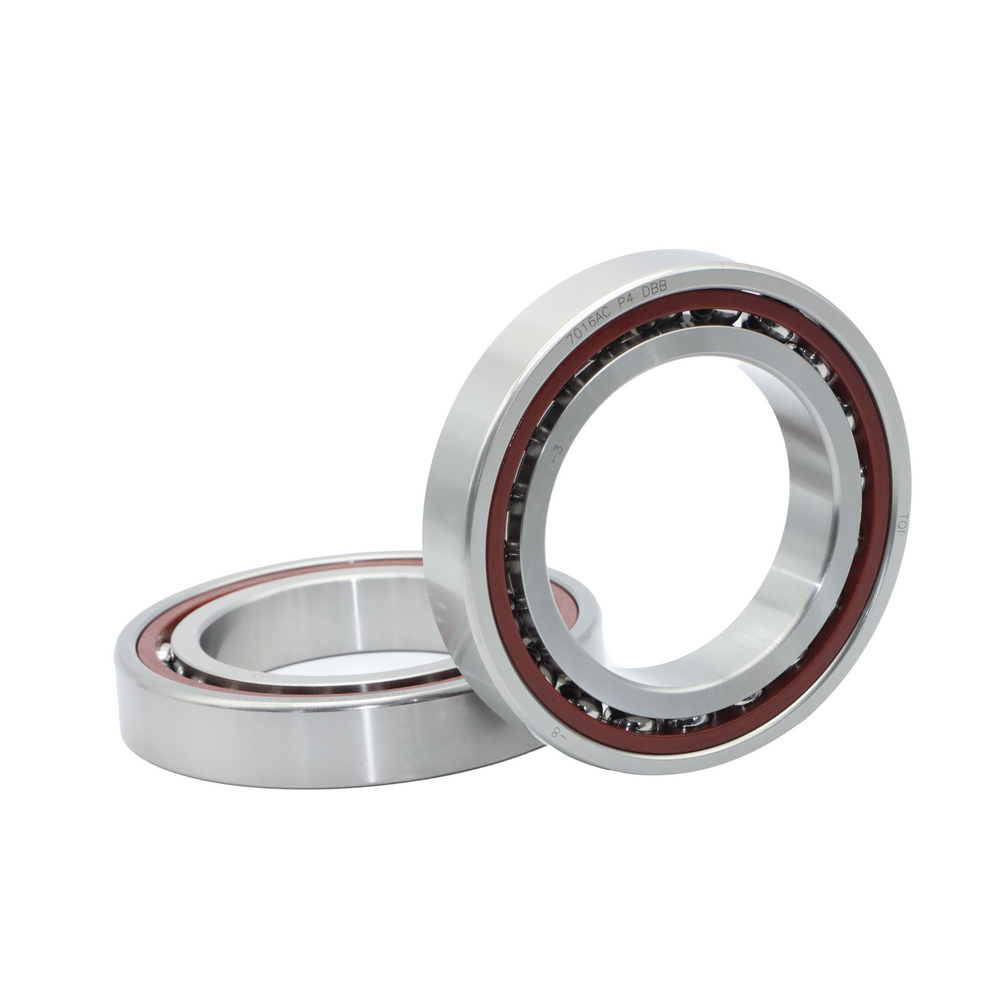

Angular Contact Steel Ball Bearing 7009C-2RZ DBB
Login to See Price
Prices are only visible to registered members.
Technical Specifications
Speed:24600 RPM
Bearing:Angular Contact Steel Ball
Inside Diameter:45 mm
Outside Diameter:75 mm
Width:16 mm
Load Rating:Cr: 15.4 KN / Cor: 12 KN
Ball Material:Hardened Chrome Steel
Ring Material:High-Carbon Steel
Weight:12
🛡️ Secure
🚚 Fast Delivery
✅ Certified
The Angular Contact Steel Ball Bearing 7009C-2RZ DBB is meticulously designed for high-precision, high-speed applications. With an inside diameter of 45mm and an outside diameter of 75mm, this bearing provides superior strength and reliability in demanding mechanical systems. It is engineered to withstand combined radial and axial loads, making it an essential component for CNC spindle assemblies and robotics. The non-contact 2RZ seals ensure efficient operation at speeds up to 24600 RPM without excessive heat buildup, ensuring long-term accuracy in industrial environments.
- High-strength hardened steel ball construction
- 45mm Bore x 75mm OD x 16mm Width
- 2RZ non-contact seals for high-speed performance
- Optimized contact angle for uniform load distribution
- High limiting speed (24600 RPM)
- Low vibration and noise for precision applications
Technical Specifications
Speed:
24600 RPM
Bearing:
Angular Contact Steel Ball
Inside Diameter:45 mm
Outside Diameter:75 mm
Width:16 mm
Load Rating:
Cr: 15.4 KN / Cor: 12 KN
Ball Material:Hardened Chrome Steel
Ring Material:High-Carbon Steel
Weight:12
Industry Applications
⚙️
High-Speed CNC Spindle Units
⚙️
Industrial Robotics and Automated Systems
⚙️
Precision Lathes and Milling Centers
⚙️
High-Performance Electric Motors
⚙️
Aerospace Mechanical Components
⚙️
Automotive Production Equipment
