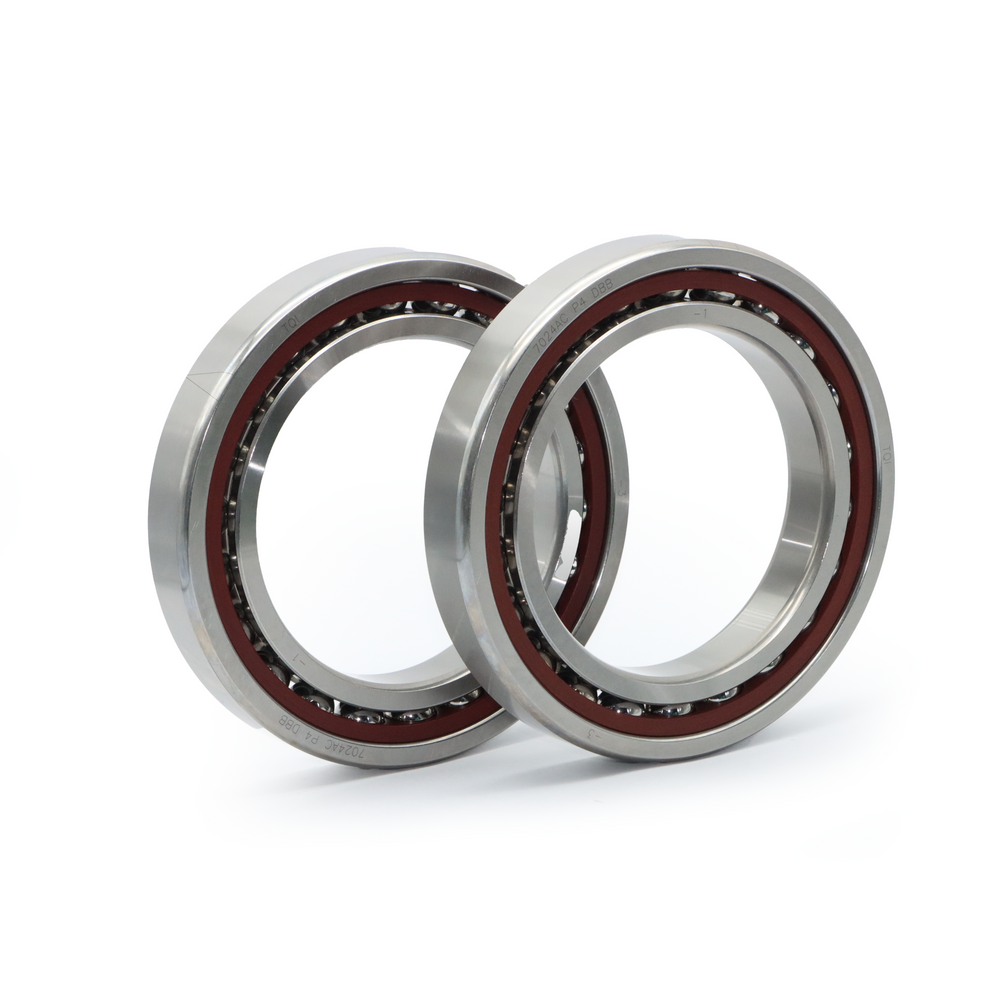

Angular Contact Steel Ball Bearing 7010C-2RZ DBB
Login to See Price
Prices are only visible to registered members.
Technical Specifications
Speed:24600 RPM
Bearing:Angular Contact Steel Ball
Inside Diameter:50 mm
Outside Diameter:80 mm
Width:16 mm
Load Rating:Cr: 15.4 KN / Cor: 12 KN
Ball Material:Hardened Chrome Steel
Ring Material:High-Carbon Steel
Weight:12
🛡️ Secure
🚚 Fast Delivery
✅ Certified
The Angular Contact Steel Ball Bearing 7010C-2RZ DBB is engineered for high-performance applications requiring extreme precision. Featuring a 50mm inside diameter and 80mm outside diameter, this bearing is built with high-grade steel to ensure durability under heavy radial and axial loads. It is specifically optimized for high-speed CNC machinery, robotics, and aerospace components. The 2RZ non-contact seals allow for a limiting speed of 24600 RPM, minimizing friction and thermal expansion.
- High-grade hardened steel ball construction
- 50mm Bore x 80mm OD x 16mm Width
- 2RZ non-contact seals for low friction and high speed
- Enhanced dual-direction axial load capacity
- High limiting speed (24600 RPM)
- Engineered for low-noise and low-vibration operation
Technical Specifications
Speed:
24600 RPM
Bearing:
Angular Contact Steel Ball
Inside Diameter:50 mm
Outside Diameter:80 mm
Width:16 mm
Load Rating:
Cr: 15.4 KN / Cor: 12 KN
Ball Material:Hardened Chrome Steel
Ring Material:High-Carbon Steel
Weight:12
Industry Applications
⚙️
High-Speed CNC Machining Centers
⚙️
Industrial Robotics and Automation
⚙️
Precision Grinding and Milling Spindles
⚙️
Aerospace and Defense Mechanical Systems
⚙️
Automotive Powertrain and Testing Rigs
⚙️
Heavy-duty Electric Motors
