BT30 100MM MILLING SPINDLE
Login to See Price
Prices are only visible to registered members.
Technical Specifications
Model:MTMSBT30100
Code:BT-30
Speed:8000 RPM (332 mm)
Duty:100H6
Bearing: 7010 P4 7008 P4
Interface:140 mm
Lube:GREASED PACKED
🛡️ Secure
🚚 Fast Delivery
✅ Certified

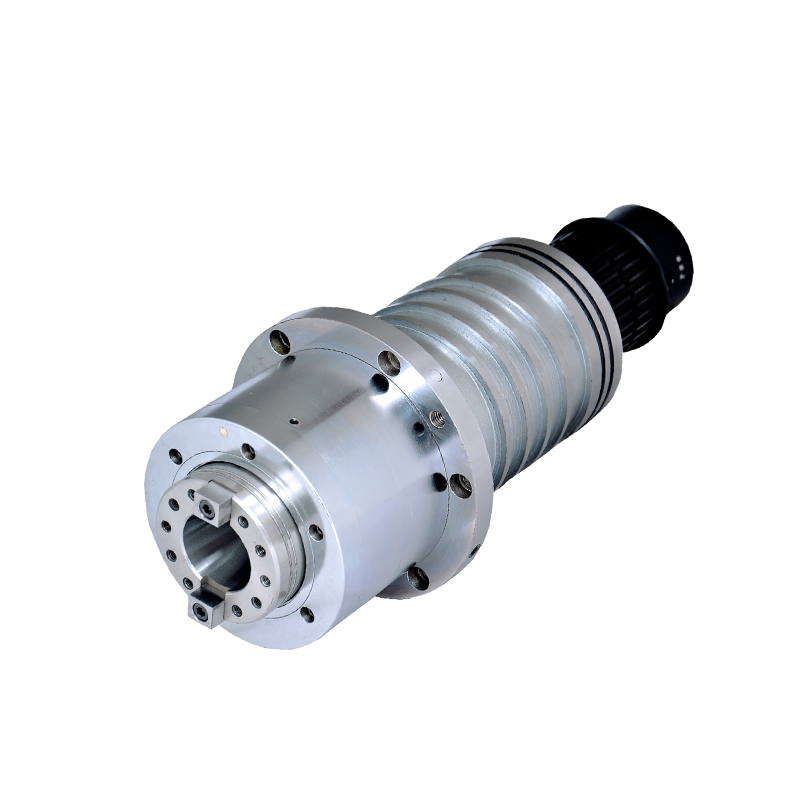

The BT30 100MM Milling Spindle is engineered for precision and durability in vertical milling applications. Featuring a high-rigidity cartridge design and a standard BT30 nose taper, it ensures accurate tool holding and exceptional performance. With a max speed of 8000 RPM and P4 grade precision bearings, this spindle is ideal for modern CNC machine builders and VMC retrofitting projects.
- Precision BT30 Nose Taper
- 100H6 Locating Diameter
- Max speed up to 8000 RPM
- 4 P4 Precision Bearings (2 Front + 2 Rear)
- Greased-packed lubrication system
- Compact cartridge design (332 mm length)
Technical Specifications
Model:MTMSBT30100
Code:BT-30
Speed:
8000 RPM (332 mm)
Duty:100H6
Bearing:
7010 P4 7008 P4
Interface:
140 mm
Lube:GREASED PACKED
Industry Applications
⚙️
Vertical Machining Centers (VMC)
⚙️
Toolroom Milling Machines
⚙️
CNC Retrofitting Projects
⚙️
Aluminum and Steel Milling
⚙️
Precision Prototype Machining
