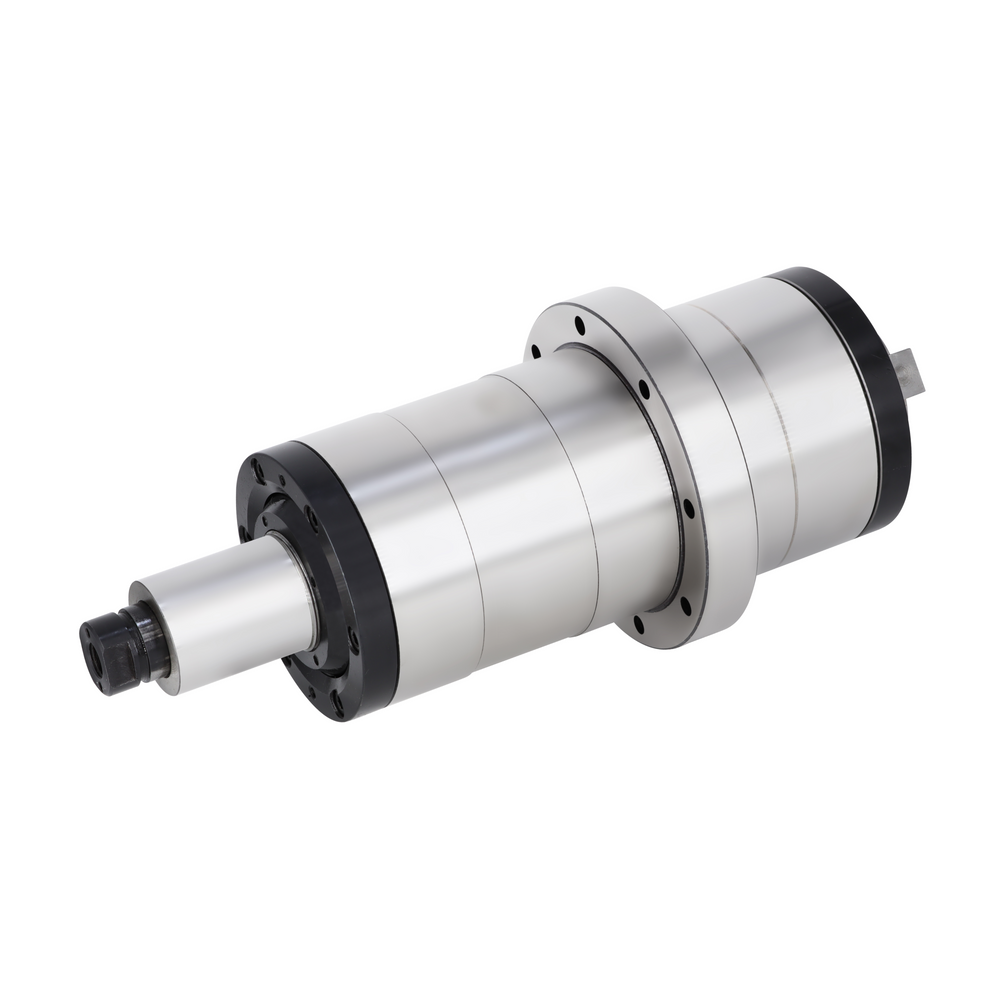

BT40 120MM MILLING SPINDLE
Prices are only visible to registered members.
The BT40 120MM Milling Spindle is a heavy-duty, precision-engineered component optimized for high-performance vertical milling machines (VMC). Featuring a robust 120H6 locating diameter and a total length of 410mm, this spindle provides the rigidity and stability necessary for demanding metal-cutting operations. It utilizes a high-spec 4+2 bearing configuration, incorporating 7012 P4 front bearings and 7010 P4 rear bearings for maximum rotational accuracy. The grease-packed lubrication system ensures a long service life with minimal maintenance, while its compatibility with BT40 tooling allows for versatile application across modern CNC systems.
- Standard BT40 Nose Taper for precise tool holding
- High-speed operation up to 8000 RPM
- Precision 120H6 Locating Diameter
- P4 Grade high-precision front (7012) and rear (7010) bearings
- Robust 410mm total length for machining stability
- Grease-packed lubrication for vertical mounting versatility
Industry Applications
Vertical Milling Centers (VMC)
CNC Machining Centers
High-Precision Metal Milling
Heavy-Duty Machining Applications
Custom Machine Building and Retrofitting
