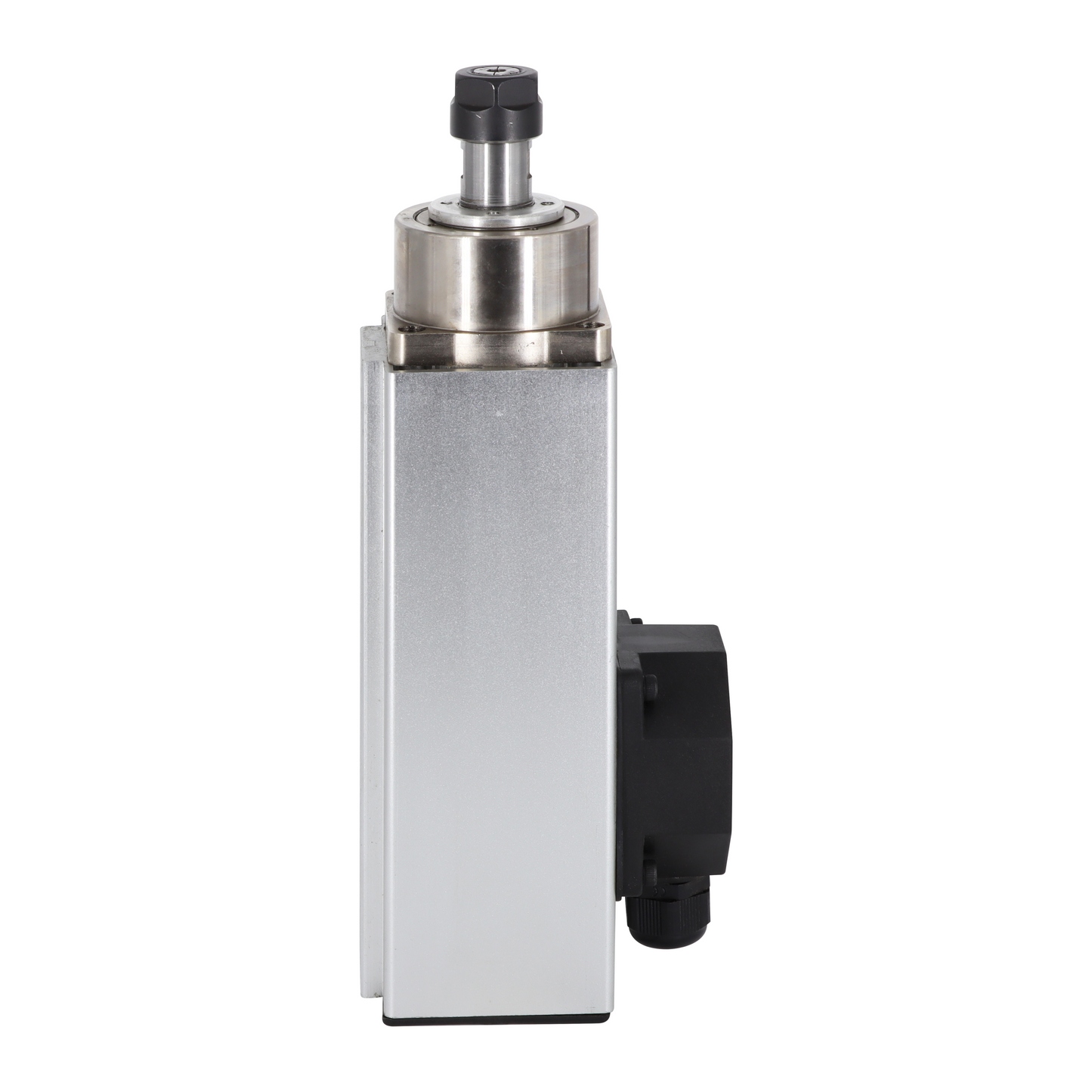

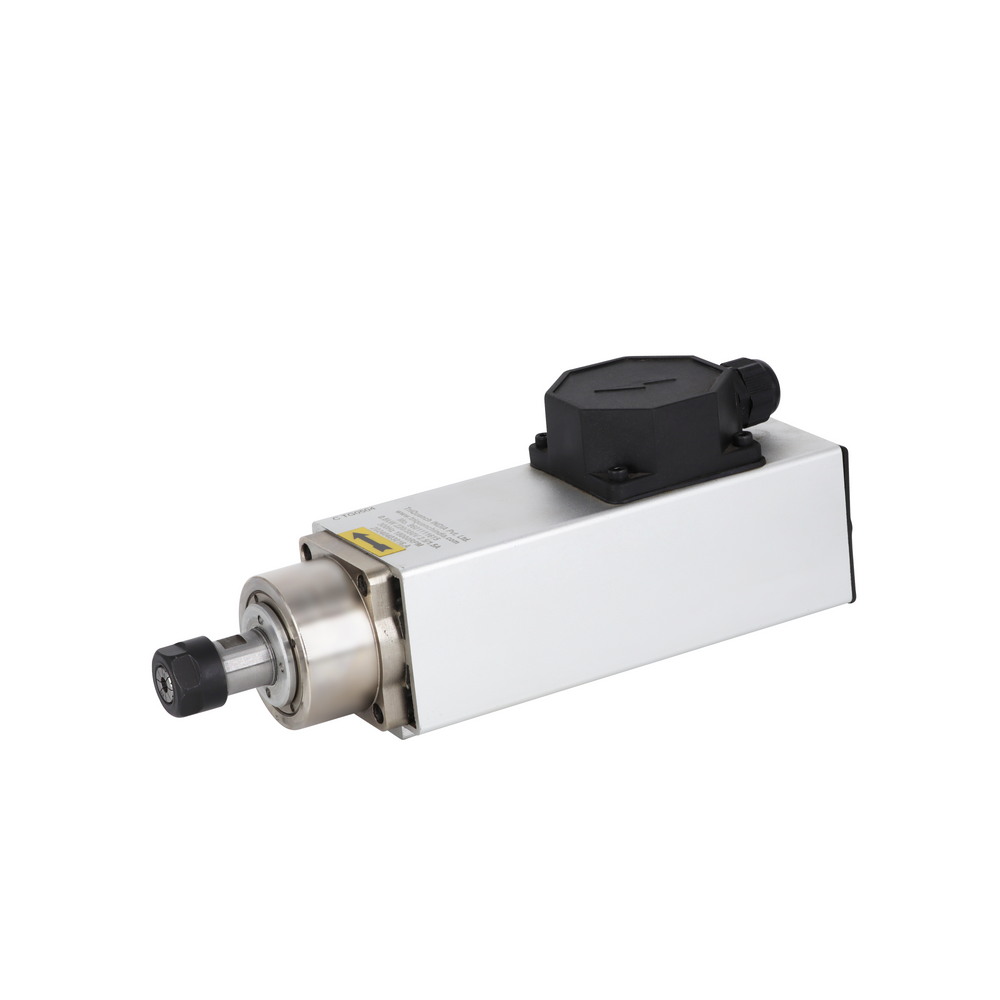

CNC Spindle Motor 0.8 kW,20000 RPM,220/380 V Aircooled Square
Login to See Price
Prices are only visible to registered members.
Technical Specifications
Power: 0.8 kW
Speed: 20000 RPM
Voltage: 220 V/380 V
Current: 333 Hz
Freq: 3.7 A/2.2 A
Torque: 0.31 Nm
Pole: 2 pole
Bearing: 2 X 7005 P4 2 X 7002 P4
Interface: ER11 (0.5mm to 7mm)
Weight: 4 kg
🛡️ Secure
🚚 Fast Delivery
✅ Certified
- Suitable for wood and CNC Routing and PCB Manufacturing
- Available with ceramic bearings
- Compact layout in only 350 mm in length
- Different configurations due to different power sizes available
- CNC Spindle Air cooled Square
Application
- CNC router Machine
- CNC Brush Industries
- CNC PCB Routing Machine
- CNC Bangle Making Machine
Technical Specifications
Power:
0.8 kW
Speed:
20000 RPM
Voltage:
220 V/380 V
Current:
333 Hz
Freq:
3.7 A/2.2 A
Torque: 0.31 Nm
Pole: 2 pole
Bearing:
2 X 7005 P4 2 X 7002 P4
Interface:
ER11 (0.5mm to 7mm)
Weight: 4 kg
