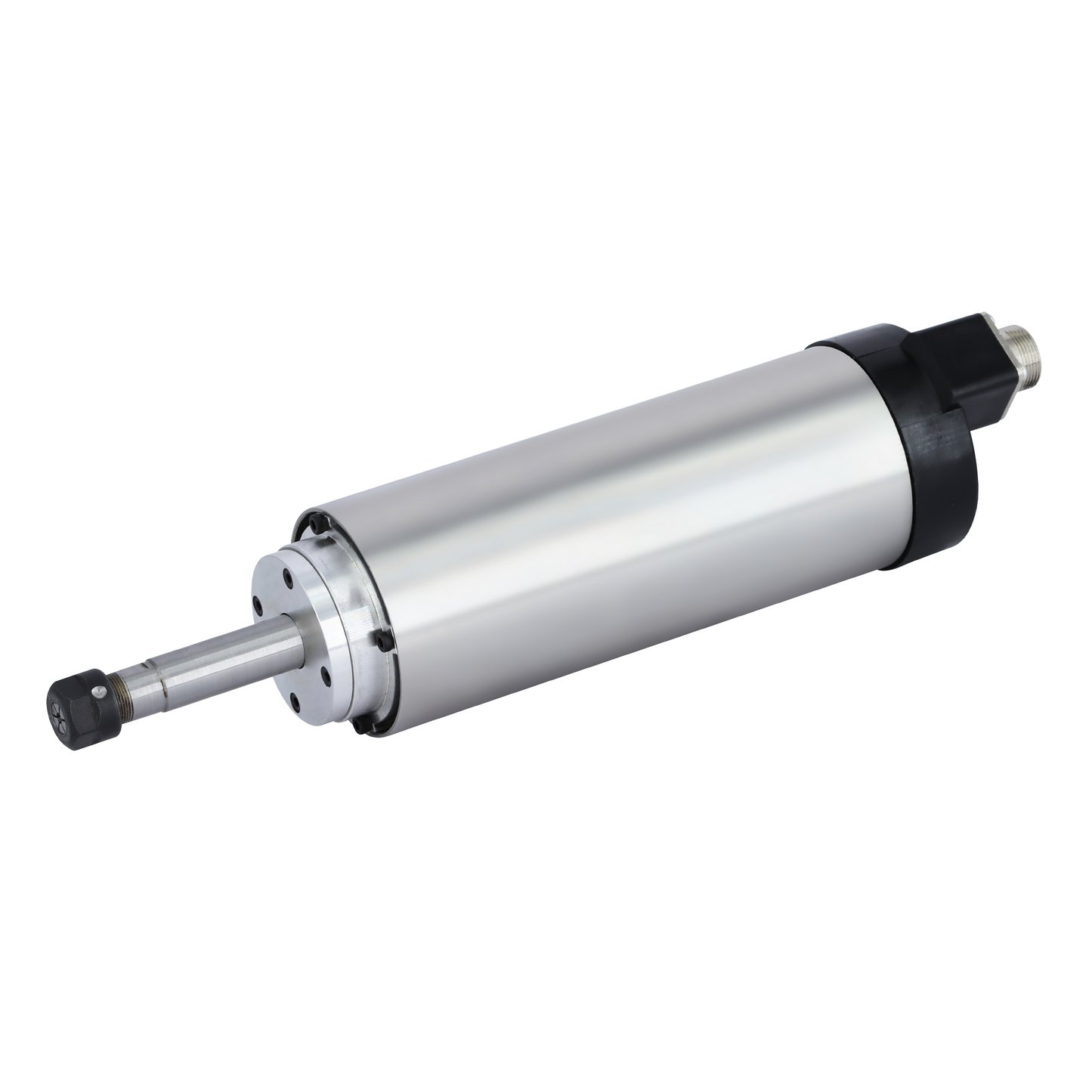

CNC Spindle Motor 0.8 kW,24000 RPM,220 V,Air cooled Round(long shaft)
Login to See Price
Prices are only visible to registered members.
Technical Specifications
Model: N08240R220M1
Power:0.8 kW
Speed: 24000 RPM
Voltage: 220 V
Current: 3.1 A
Freq: 400 Hz
Torque: 0.31 Nm
Pole: 2 pole
Bearing: 2 X 7002 P4 2 X 7000 P4
Interface:ER11 (0.5mm to 7mm)
Weight: 3 kg
🛡️ Secure
🚚 Fast Delivery
✅ Certified
- Suitable for wood carving and PCB Drilling Applications, Aluminum processing, and Bangle Making Applications
- Available with ceramic bearings
- Compact layout through the length is only 350 mm
- Different configurations due to different power sizes available
- CNC Air Cooled Spindle
Technical Specifications
Model: N08240R220M1
Power:
0.8 kW
Speed:
24000 RPM
Voltage:
220 V
Current:
3.1 A
Freq:
400 Hz
Torque: 0.31 Nm
Pole: 2 pole
Bearing:
2 X 7002 P4 2 X 7000 P4
Interface:
ER11 (0.5mm to 7mm)
Weight: 3 kg
