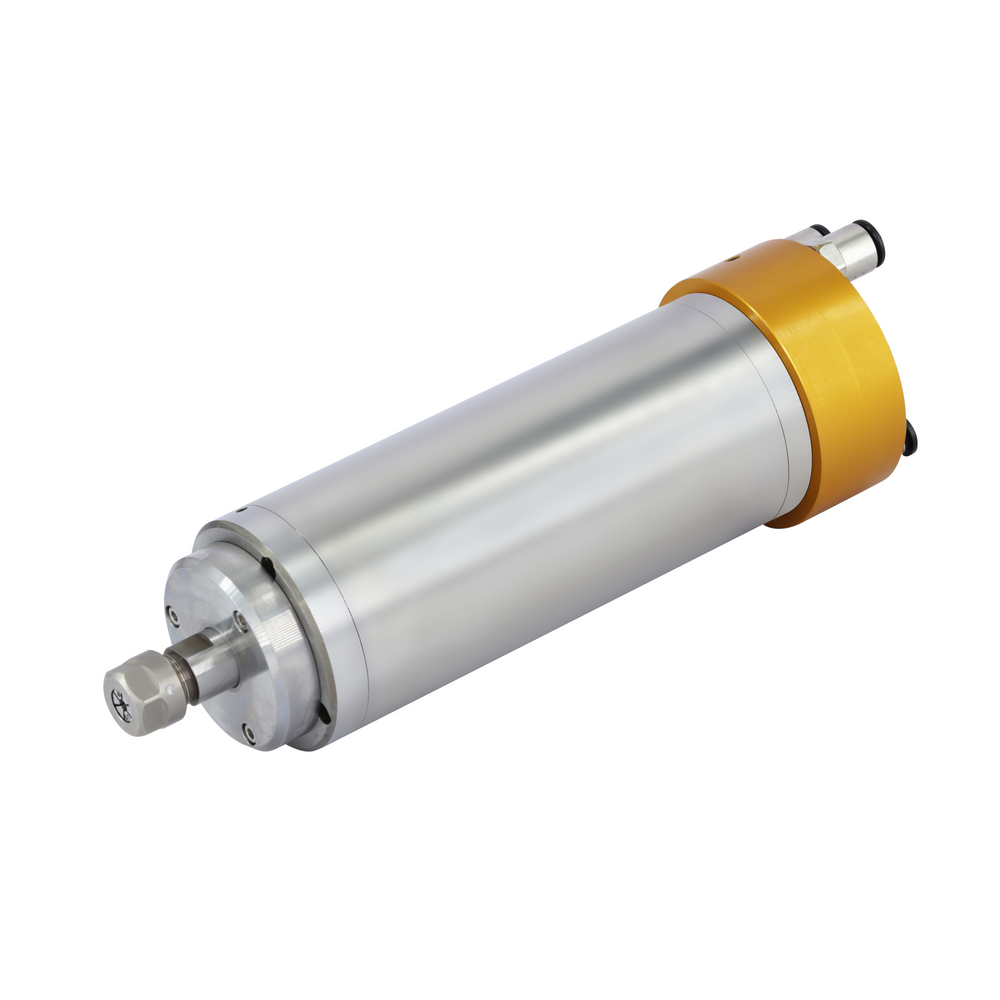

CNC Spindle Motor 1.2 kW,220 V,40000 RPM Water Cooled
Login to See Price
Prices are only visible to registered members.
Technical Specifications
Model:L12600R220M1
Power:1.2 kw
Speed: 40000 RPM
Voltage: 220 V
Current:5.0 A
Freq: 666 Hz
Torque: 0.42 N.m
Pole:2
Bearing: 2 X 7002 P4 2 X 7000 P4
Interface: ER11 (0.5mm to 7mm)
Weight: 4 Kg
🛡️ Secure
🚚 Fast Delivery
✅ Certified
The TriQuench L12600R220M1 is a high-speed water-cooled spindle motor designed for applications requiring extreme precision and high surface finish. Delivering 1.2 kW of power at 40000 RPM, this motor is specifically engineered for the CNC bangle-making industry and high-density PCB drilling. The water-cooling system ensures thermal stability during continuous high-speed operation, while the P4 grade bearings provide minimal runout and vibration.
- Maximum speed of 40000 RPM
- 220V Single/Three Phase compatibility
- ER11 Collet system (0.5mm to 7mm)
- 666 Hz High-frequency performance
- Advanced water-cooling jacket
- Dual front and dual rear P4 bearings
Technical Specifications
Model:L12600R220M1
Power:
1.2 kw
Speed:
40000 RPM
Voltage:
220 V
Current:
5.0 A
Freq:
666 Hz
Torque: 0.42 N.m
Pole:2
Bearing:
2 X 7002 P4 2 X 7000 P4
Interface:
ER11 (0.5mm to 7mm)
Weight: 4 Kg
Industry Applications
⚙️
CNC Bangle Making Industry
⚙️
High-Density PCB Drilling
⚙️
Acrylic and Plastic High-Speed Routing
⚙️
Micro-Machining Applications
⚙️
Jewelry Engraving and Milling
