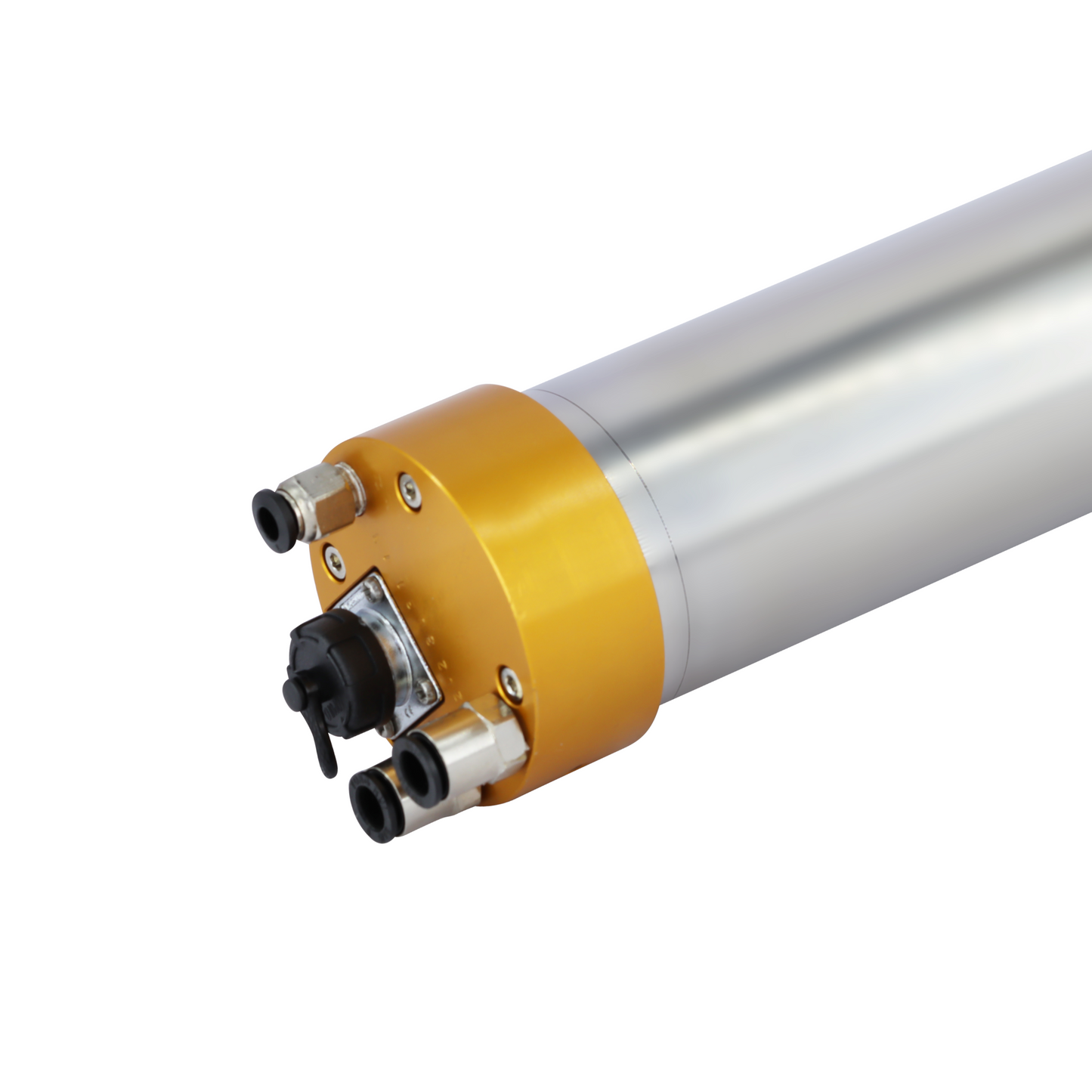

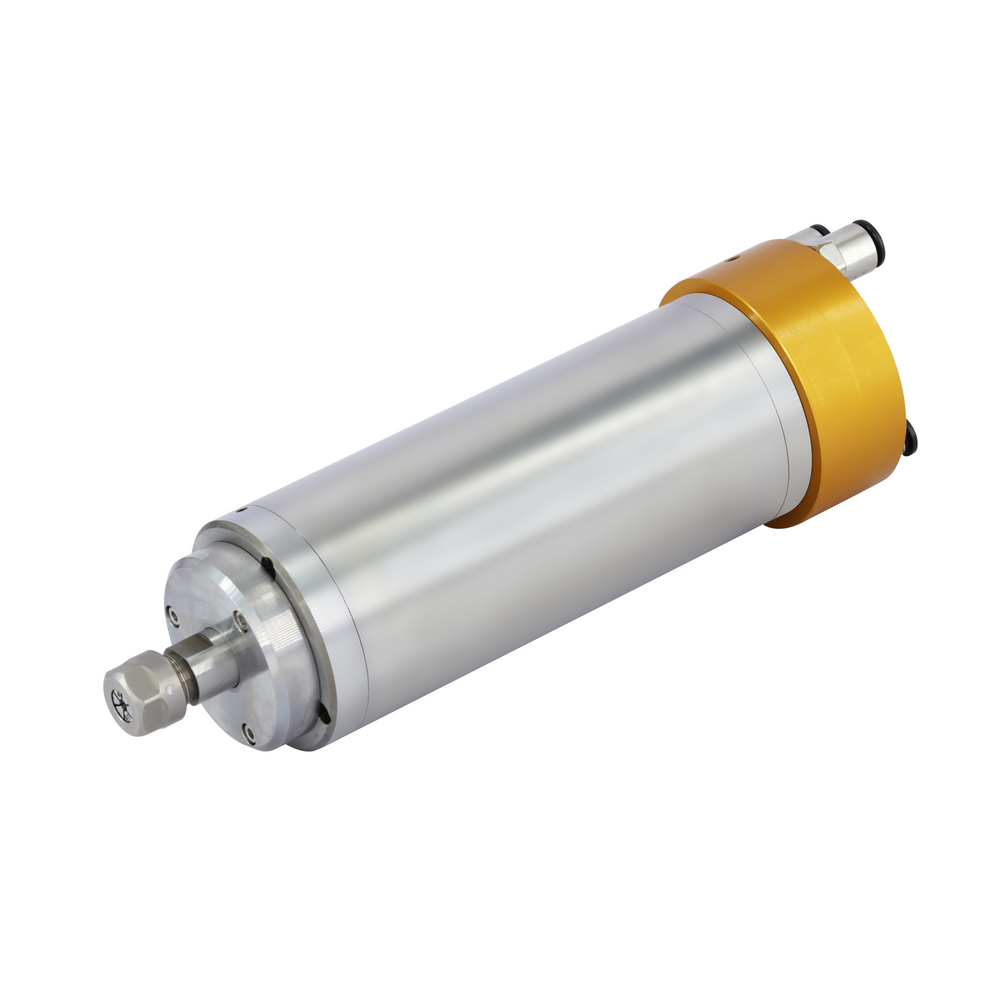

CNC Spindle Motor 1.8 kW,220V,60000RPM Water Cooled
Login to See Price
Prices are only visible to registered members.
Technical Specifications
Model: W18600R220M1
Power:1.8 kw
Speed: 60000 RPM
Voltage:220V
Current: 7.5 A
Freq: 1000 Hz
Torque: 3.18 N.m
Pole:2
Bearing: 2 X 7003 P4 2 X 7003 P4
Interface: ER11(1mm to 7mm)
Weight:4.5Kg
🛡️ Secure
🚚 Fast Delivery
✅ Certified
- Suitable for CNC PCB Drilling Machine / CNC Jewellery Making Machine
- Efficient cooling and low noise level
- High-Quality Ceramic Bearings
- Accuracy is less than 3 Micron
- CNC Spindle Motor 1.8KW
Application
- PCB Drilling
- Jewellery Making
Technical Specifications
Model: W18600R220M1
Power:
1.8 kw
Speed:
60000 RPM
Voltage:
220V
Current:
7.5 A
Freq:
1000 Hz
Torque: 3.18 N.m
Pole:2
Bearing:
2 X 7003 P4 2 X 7003 P4
Interface:
ER11(1mm to 7mm)
Weight:4.5Kg
