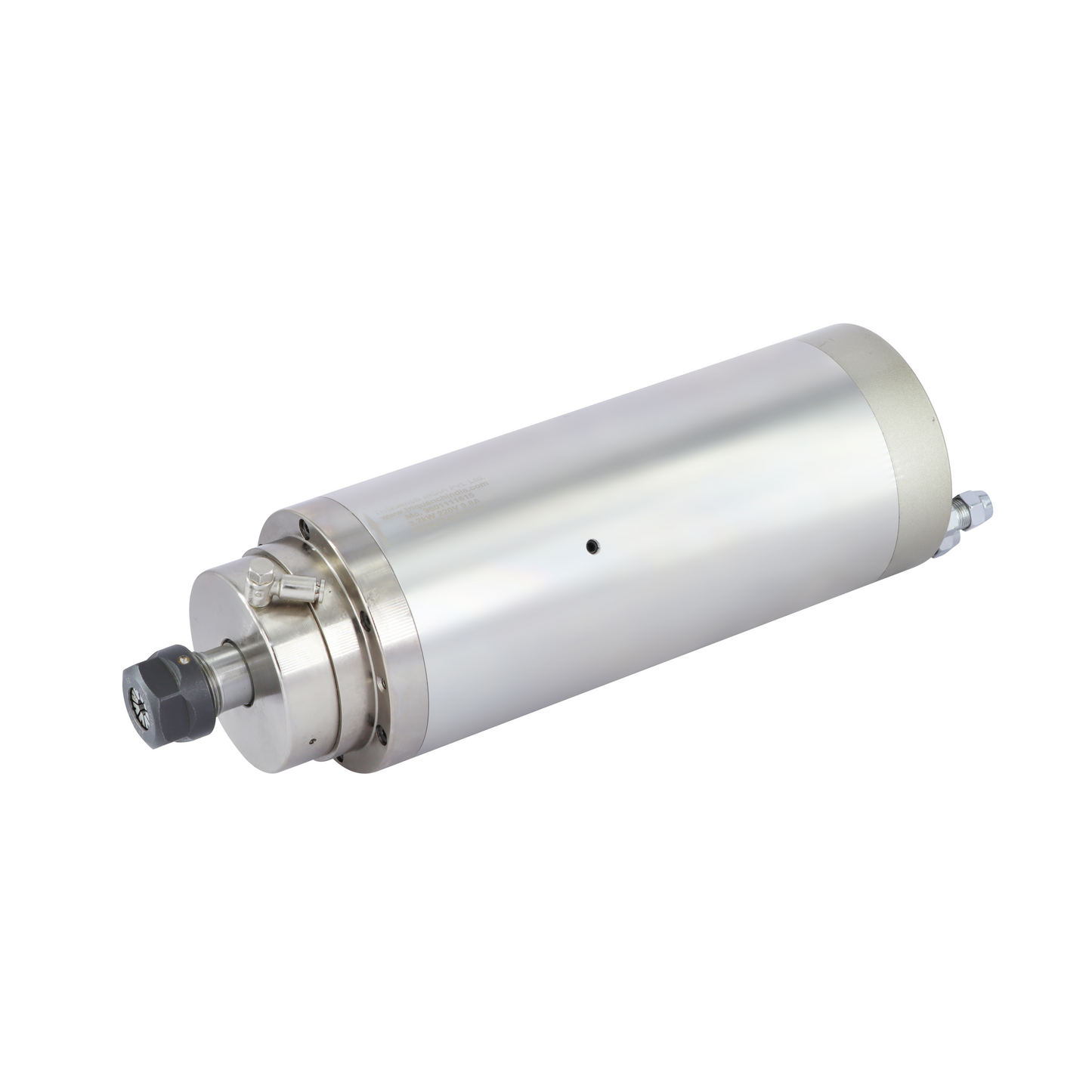

CNC Spindle Motor 3.0 kW,380 V,24000 RPM Water Cooled
Login to See Price
Prices are only visible to registered members.
Technical Specifications
Model:W30240R380M1
Power: 3.0 kW
Speed: 24000 RPM
Voltage:380V
Current: 400 Hz
Freq: 9.8 A
Torque:1.27 Nm
Pole: 2 pole
Bearing: 2 X 7005 P4 2 X 7003 P4
Interface: ER20(1mm to 13mm)
Weight: 8.3 kg
🛡️ Secure
🚚 Fast Delivery
✅ Certified
- Suitable for CNC Marble Cutting.
- CNC Stone & wood Carving Machine
- CNC soft metal Cutting ( Alu. Brass, Copper , Plastic) Machine.
- Efficient cooling and low noise level
- High Quality Ceramic Bearings
- Accuracy is less than 3 Micron
Application
- CNC Marble Cutting Machine
- CNC Stone & wood Carving Machine
- CNC soft metal ( Alu. Brass, Copper , Plastic) Cutting Machine
Technical Specifications
Model:W30240R380M1
Power:
3.0 kW
Speed:
24000 RPM
Voltage:
380V
Current:
400 Hz
Freq:
9.8 A
Torque:1.27 Nm
Pole: 2 pole
Bearing:
2 X 7005 P4 2 X 7003 P4
Interface:
ER20(1mm to 13mm)
Weight: 8.3 kg
