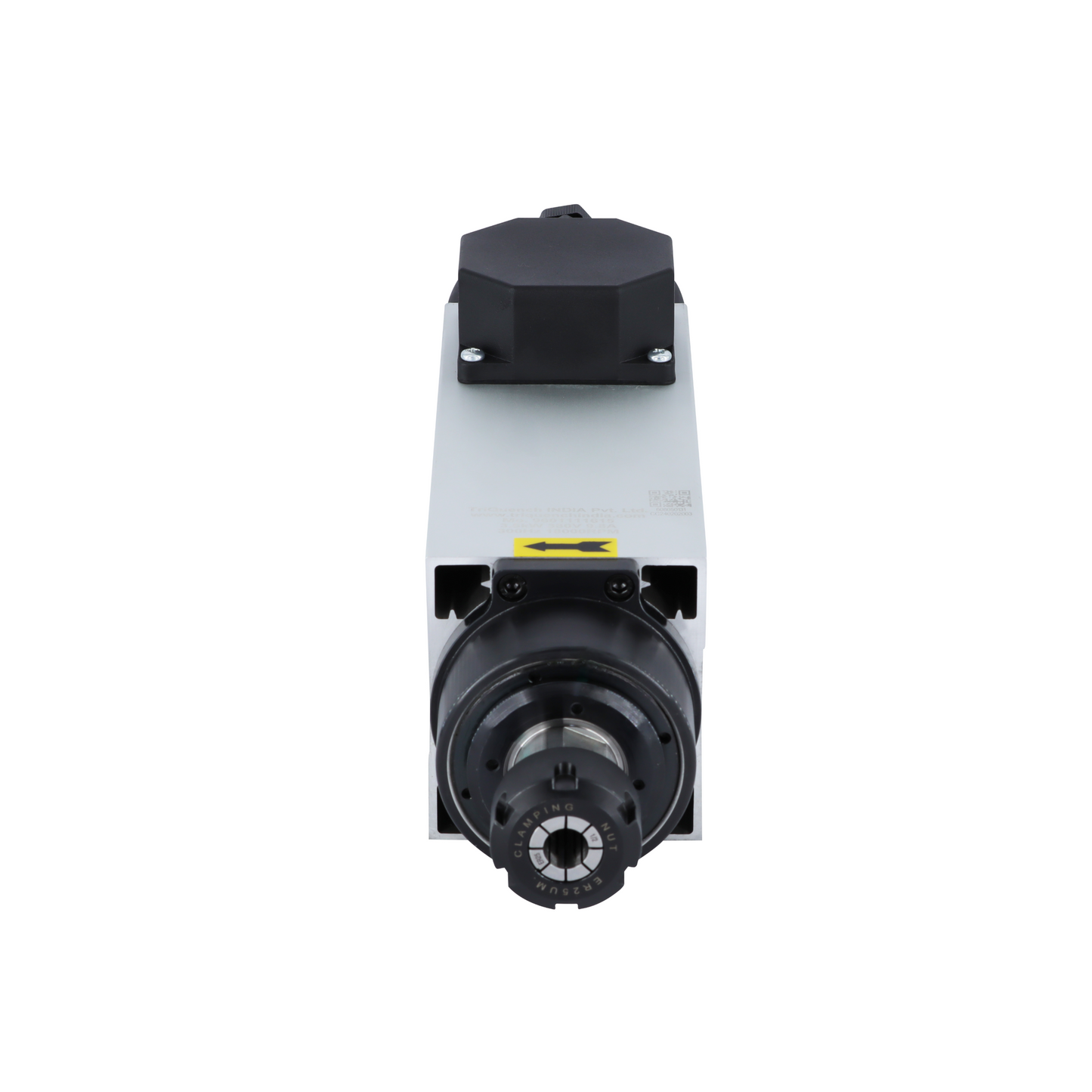

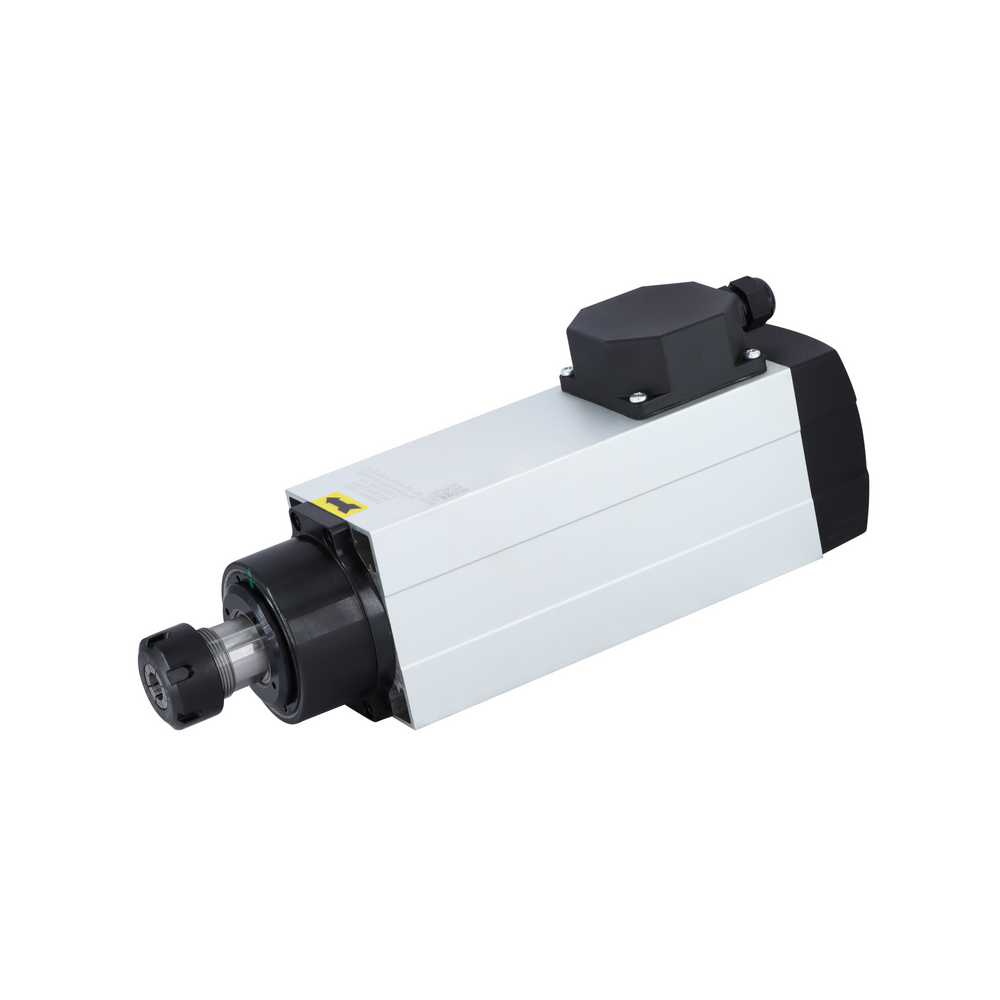

CNC Spindle Motor 3.5 kW,18000 RPM,220/380 V ER25 Aircooled square
Login to See Price
Prices are only visible to registered members.
Technical Specifications
Model: A35180S2238M125
Power:3.5KW
Speed: 18000 RPM
Voltage: 220 V/380 V
Current: 12 A/7.2 A
Freq: 300 Hz
Torque: 1.68 N.m
Pole:2
Bearing: 2 X 7007 P4 2 X 7002 P4
Interface: ER25(1mm to 16mm)
Weight: 8.5 Kg
🛡️ Secure
🚚 Fast Delivery
✅ Certified
- Suitable for wood and CNC Routing and PCB Manufacturing
- Available with ceramic bearings
- Compact layout in only 350 mm in length
- Different configurations due to different power sizes available
- CNC Air Cooled Spindle Motor 3.5kW
Application
- Wood carving
Technical Specifications
Model: A35180S2238M125
Power:
3.5KW
Speed:
18000 RPM
Voltage:
220 V/380 V
Current:
12 A/7.2 A
Freq:
300 Hz
Torque: 1.68 N.m
Pole:2
Bearing:
2 X 7007 P4 2 X 7002 P4
Interface:
ER25(1mm to 16mm)
Weight: 8.5 Kg
