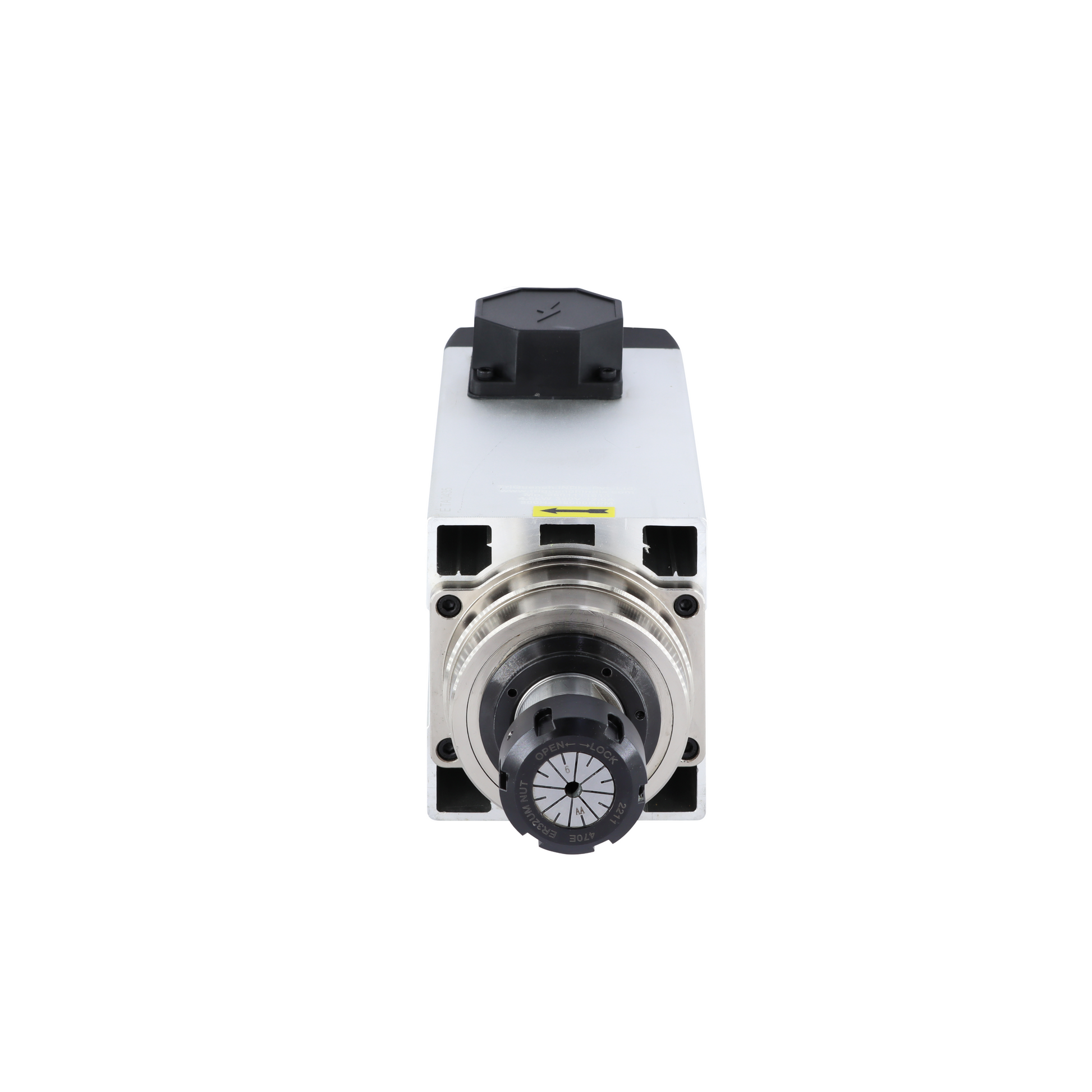

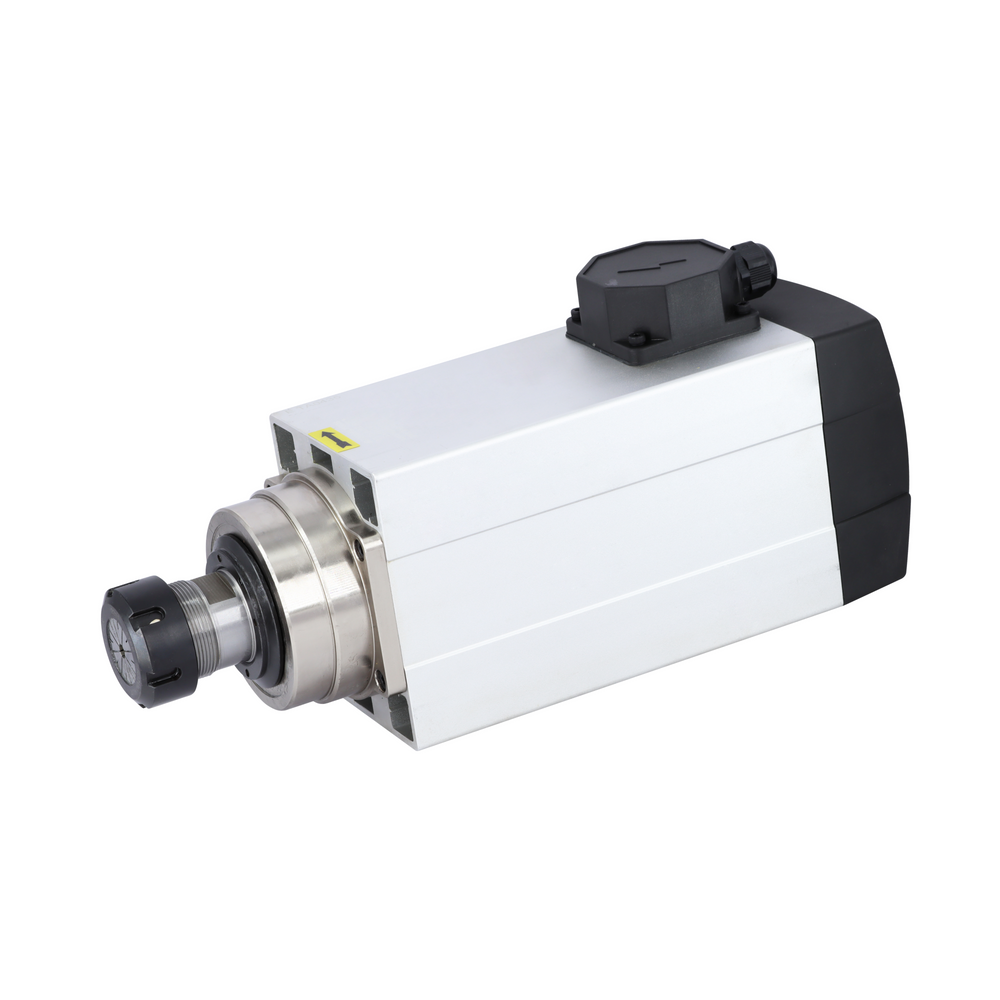

CNC Spindle Motor 4.5 kW,18000 RPM,380 V Aircooled square
Login to See Price
Prices are only visible to registered members.
Technical Specifications
Model: A45180S380M1
Power: 4.5 kW
Speed: 18000 RPM
Voltage: 380 V
Current: 300 Hz
Freq: 9.0 A
Torque: 2.27 Nm
Pole:2 pole
Bearing: 2 X 7008 P4 2 X 7002 P4
Interface:ER32(2mm to 20mm)
Weight: 12 kg
🛡️ Secure
🚚 Fast Delivery
✅ Certified
- Suitable for wood and CNC Routing and PCB Manufacturing
- Available with ceramic bearings
- Compact layout in only 350 mm in length
- Different configurations due to different power sizes available
- CNC Air Cooled Spindle Motor 3.5kW
Application
- CNC Router Manufacturer
- CNC Pattern making Machine
- CNC Foam Cutting Machine
- CNC Wood carving Industries
Technical Specifications
Model: A45180S380M1
Power:
4.5 kW
Speed:
18000 RPM
Voltage:
380 V
Current:
300 Hz
Freq:
9.0 A
Torque: 2.27 Nm
Pole:2 pole
Bearing:
2 X 7008 P4 2 X 7002 P4
Interface:
ER32(2mm to 20mm)
Weight: 12 kg
