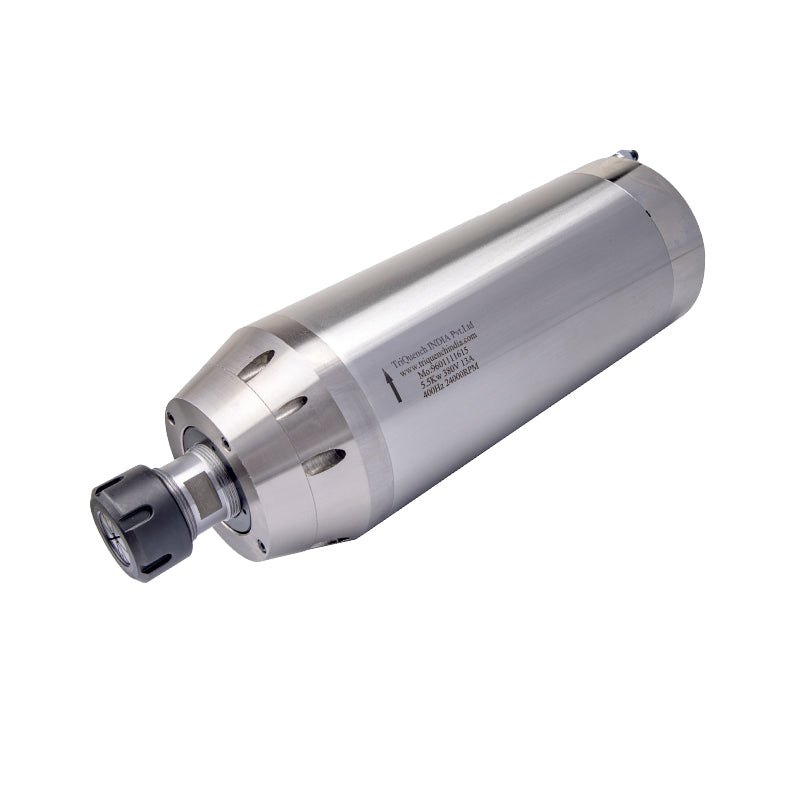

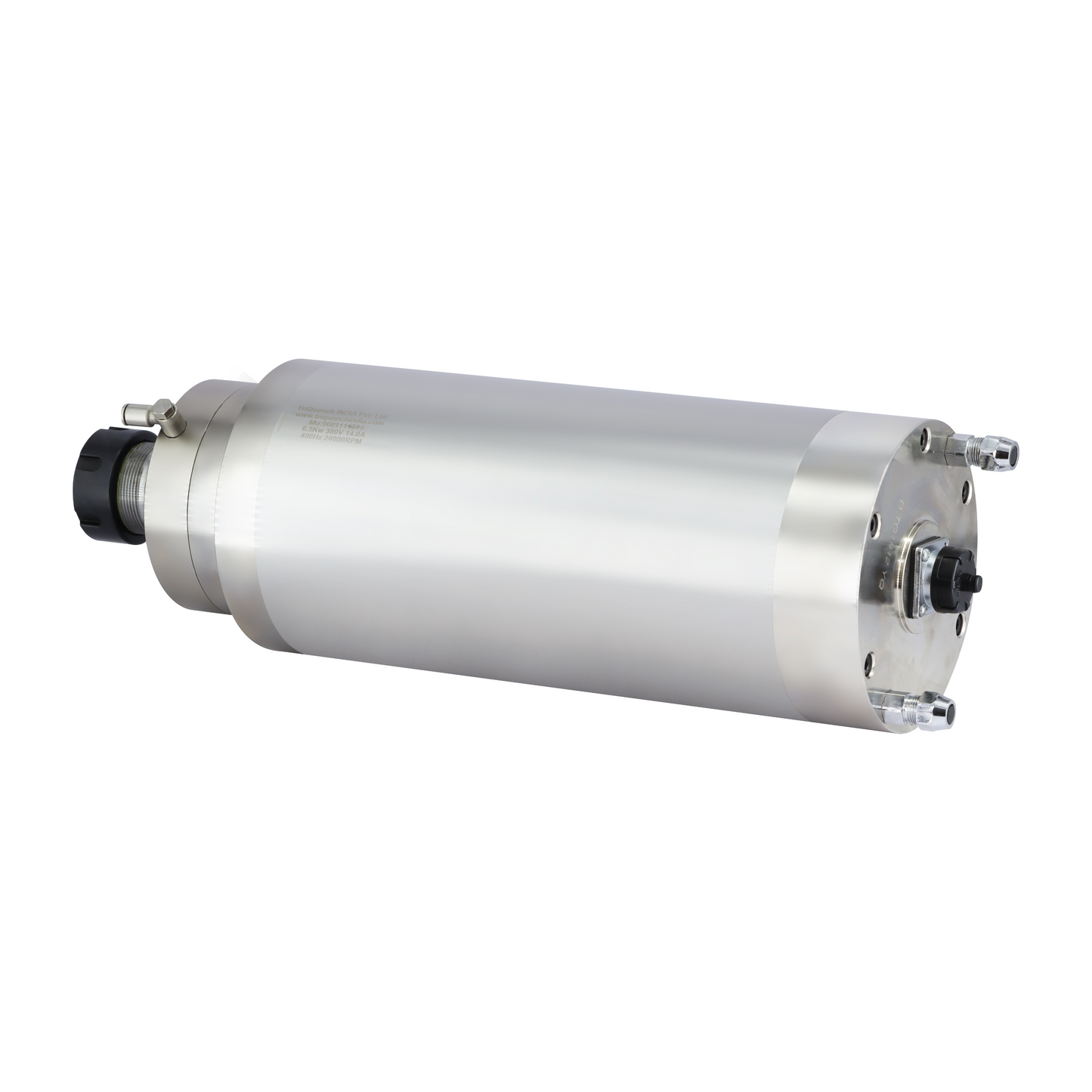

CNC Spindle Motor 5.5 kW,380 V,24000 RPM Water Cooled
Login to See Price
Prices are only visible to registered members.
Technical Specifications
Model:W55240R380M1
Power:5.5
Speed:24000 RPM
Voltage:380 V
Current:13.0 A
Freq: 400 Hz
Torque:2.91 N.m
Pole:2
Bearing: 2 X 7007 P4 2 X 7005 P4
Interface:ER25(1mm to 16mm)
Weight:22kg
🛡️ Secure
🚚 Fast Delivery
✅ Certified
- Suitable for CNC Bangle Making Machine/ CNC PCB Drilling Machine/CNC wood carving Machine
- Efficient cooling and low noise level
- High Quality Ceramic Bearings
- Accuracy is less than 3 Micron
Application
- Stone carving
- Metal engraving
Technical Specifications
Model:W55240R380M1
Power:
5.5
Speed:
24000 RPM
Voltage:
380 V
Current:
13.0 A
Freq:
400 Hz
Torque:2.91 N.m
Pole:2
Bearing:
2 X 7007 P4 2 X 7005 P4
Interface:
ER25(1mm to 16mm)
Weight:22kg
