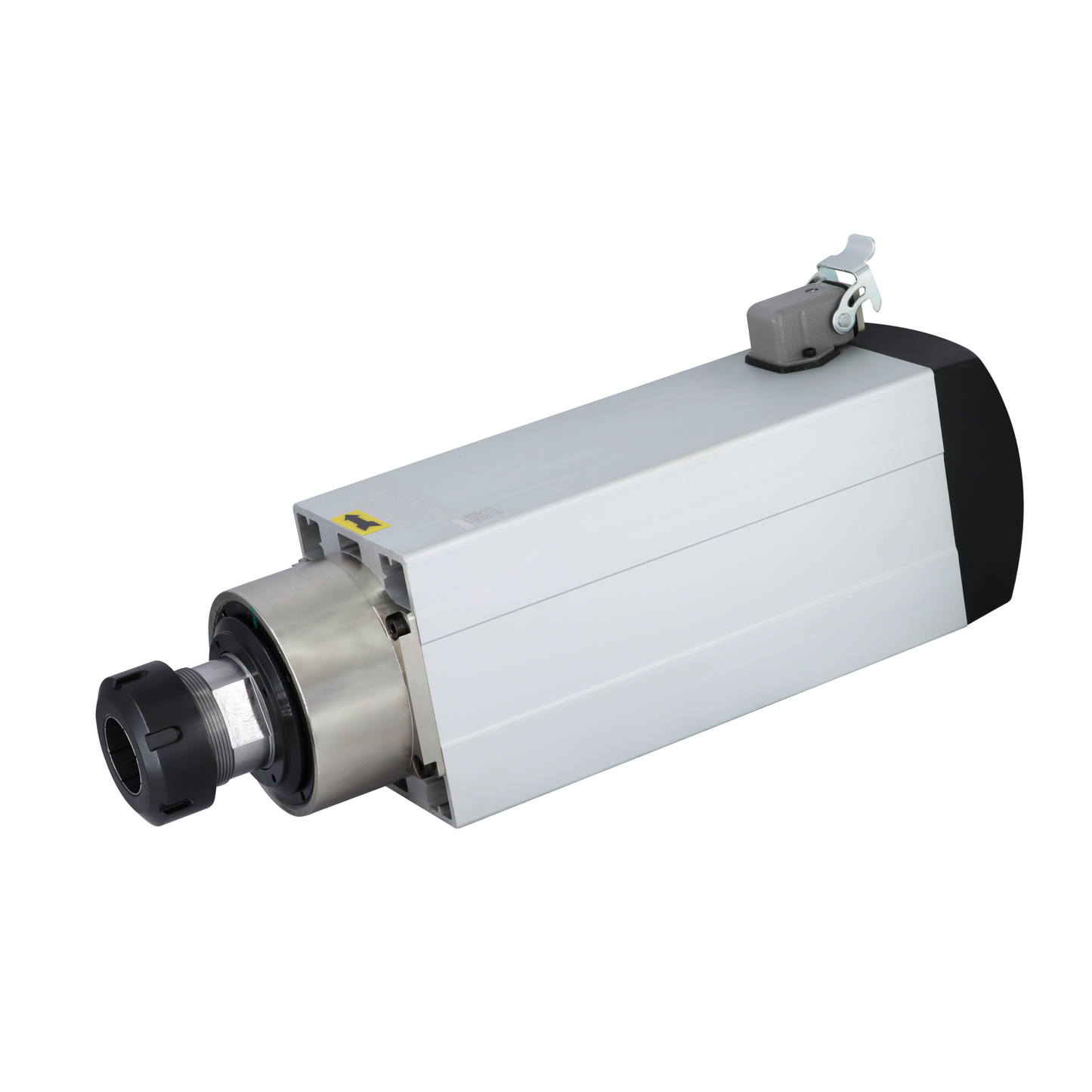

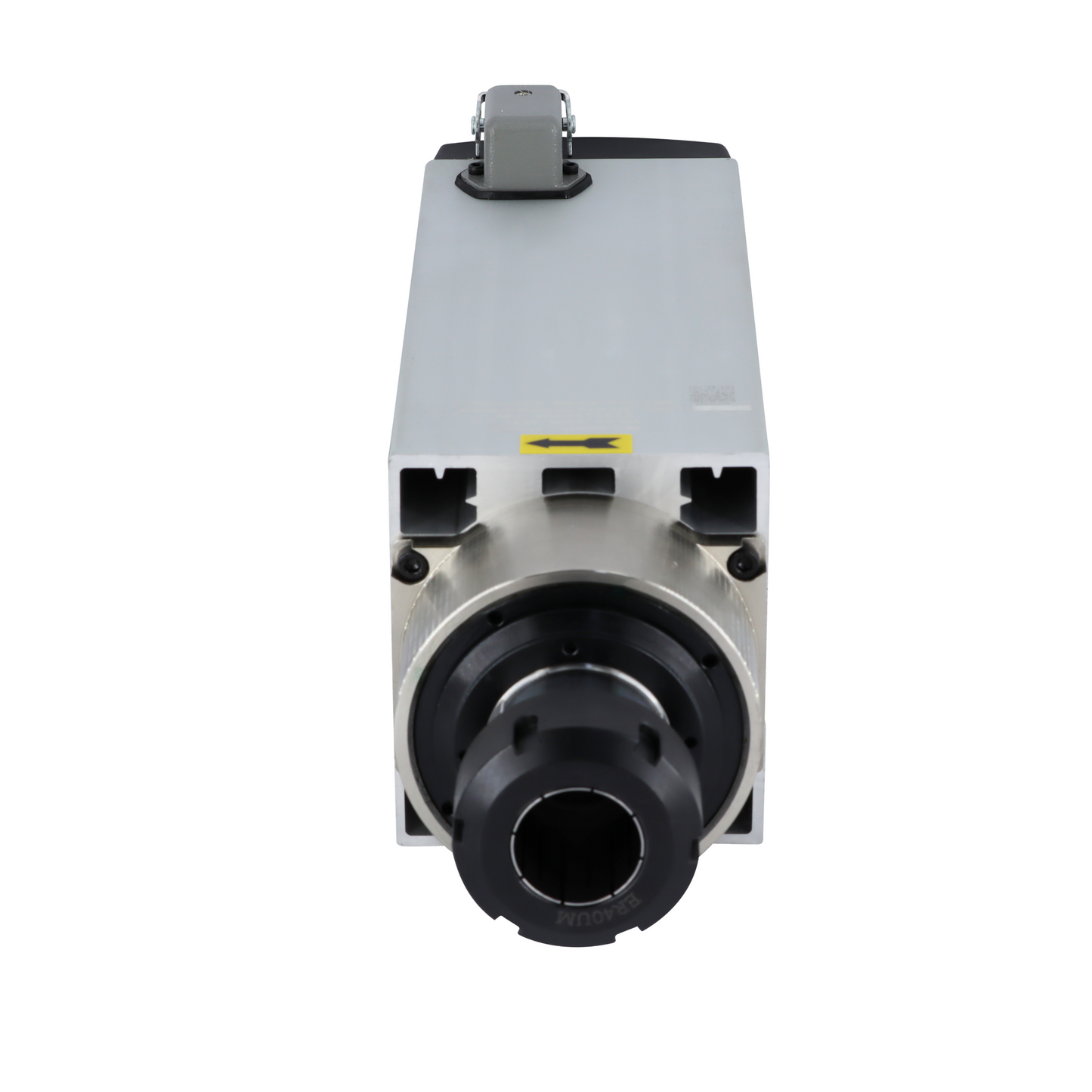

CNC Spindle Motor 7.5 kW,18000 RPM,380 V Air cooled square ER40

Technical Specifications

Model:A75180S380M132

Power:7.5 kW

Speed:18000 RPM

Voltage:380 V

Current:15.0 A

Freq: 300 Hz

Torque: 3.58 Nm

Pole: 2 pole

Bearing:2 X 7008 P4 2 X 7004 P4

Interface: ER32(2mm to 20mm)

Weight: 17.2 kg

🛡️ Secure

🚚 Fast Delivery

✅ Certified

Suitable for CNC Bangle Making Machine/ CNC PCB Drilling Machine/CNC wood carving Machine
Efficient cooling and low noise level
High Quality Ceramic Bearings
Accuracy is less than 3 Micron

Technical Specifications

Model:A75180S380M132

Power: 7.5 kW

Speed: 18000 RPM

Voltage: 380 V

Current: 15.0 A

Freq: 300 Hz

Torque: 3.58 Nm

Pole: 2 pole

Bearing: 2 X 7008 P4 2 X 7004 P4

Interface: ER32(2mm to 20mm)

Weight: 17.2 kg
