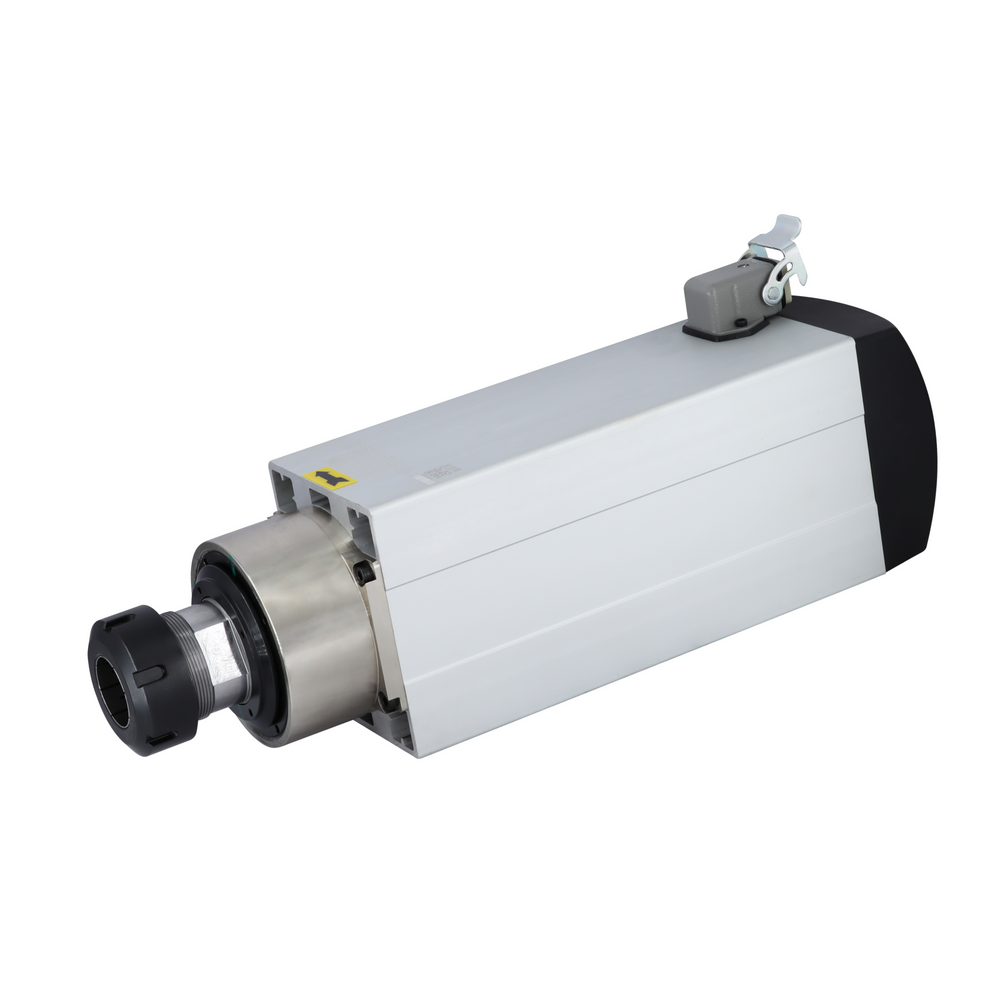

CNC Spindle Motor 7.5 kW,18000 RPM,380 V Aircooled square
Login to See Price
Prices are only visible to registered members.
Technical Specifications
Model:A75180S380M132
Power:7.5 kW
Speed:18000 RPM
Voltage:380 V
Current:15.0 A
Freq: 300 Hz
Torque: 3.58 Nm
Pole: 2 pole
Bearing: 2 X 7008 P4 2 X 7004 P4
Interface:ER32(2mm to 20mm)
Weight:17.2 kg
🛡️ Secure
🚚 Fast Delivery
✅ Certified
- Suitable for wood and CNC Routing and PCB Manufacturing
- Available with ceramic bearings
- Compact layout in only 350 mm in length
- Different configurations due to different power sizes available
