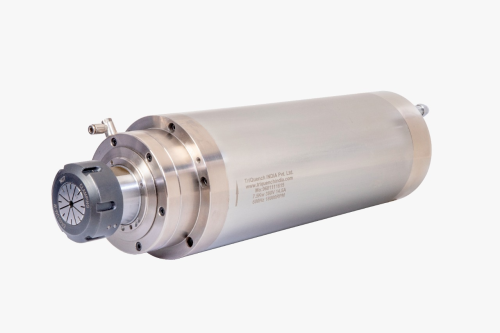

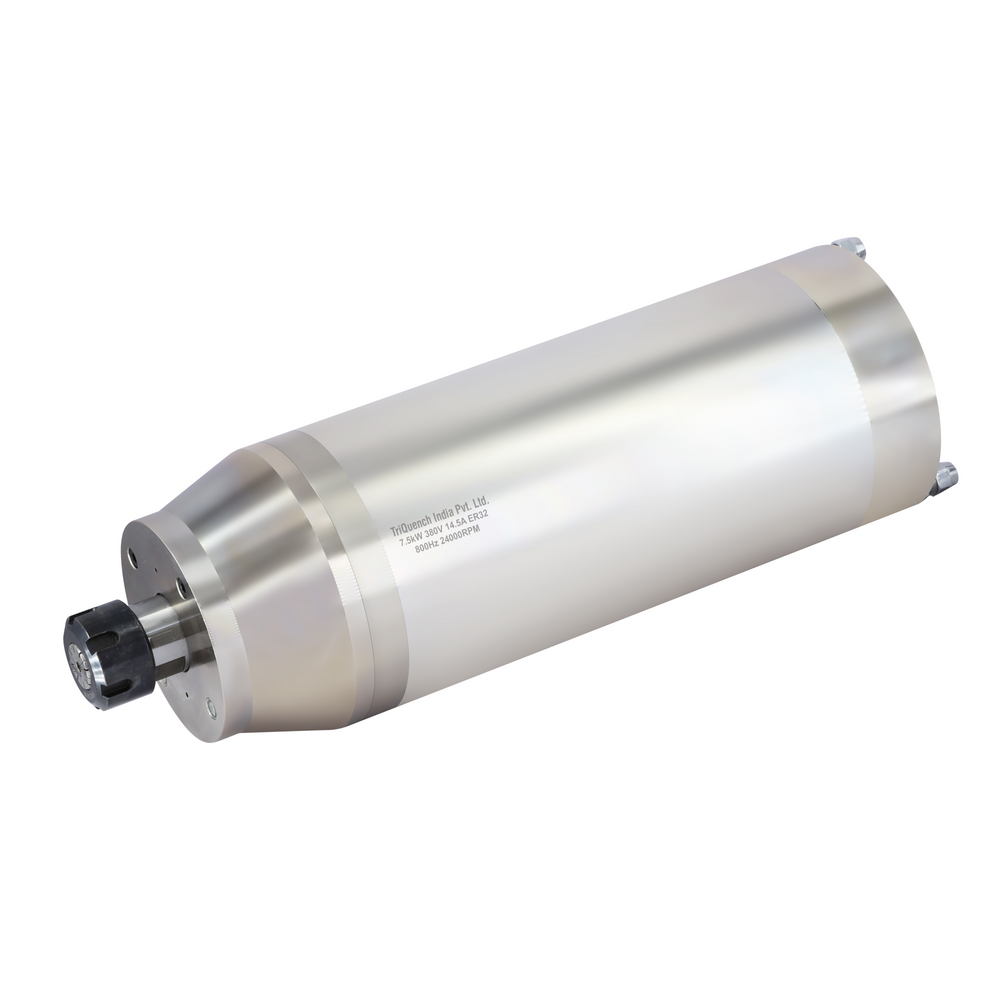

CNC Spindle Motor 7.5 kW,380 V,24000 RPM 800 Hz,ER32 Water Cooled
Login to See Price
Prices are only visible to registered members.
Technical Specifications
Model: W75240R380M1800
Power: 7.5 kw
Speed: 24000 RPM
Voltage: 380 V
Current: 14.5 A
Freq:800 Hz
Torque: 5.76 N.m
Pole:4 pole
Bearing:2 X 7008 P4 2 X 7005 P4
Interface:ER32(2mm to 20mm)
Weight: 26.5 Kg
🛡️ Secure
🚚 Fast Delivery
✅ Certified
- Suitable for CNC Bangle Making Machine/ CNC PCB Drilling Machine/CNC wood carving Machine
- Efficient cooling and low noise level
- High Quality Ceramic Bearings
- Accuracy is less than 3 Micron
Technical Specifications
Model: W75240R380M1800
Power:
7.5 kw
Speed:
24000 RPM
Voltage:
380 V
Current:
14.5 A
Freq:
800 Hz
Torque: 5.76 N.m
Pole:4 pole
Bearing:
2 X 7008 P4 2 X 7005 P4
Interface:
ER32(2mm to 20mm)
Weight: 26.5 Kg
