Key Features:
- Optimized optical configuration and smooth and efficient airflow design.
- Automatic focusing range: +10 ~ -12mm, with an adjustment accuracy of 0.05mm.
- Equipped with D30 composite lens groups; the maximum fiber power is up to 3KW.
- Maximum acceleration of focus lens driver: 10m/s2 with a maximum speed of 10m/min.
- Compatibility with QBH, QD, and other fiber interfaces to suit various fiber lasers.
- Drawer-type lens mount facilitates faster and simpler protective lens replacement.
- Use of composite lens groups for optimal beam collimation, focusing, optical quality, and cutting effect.
Description

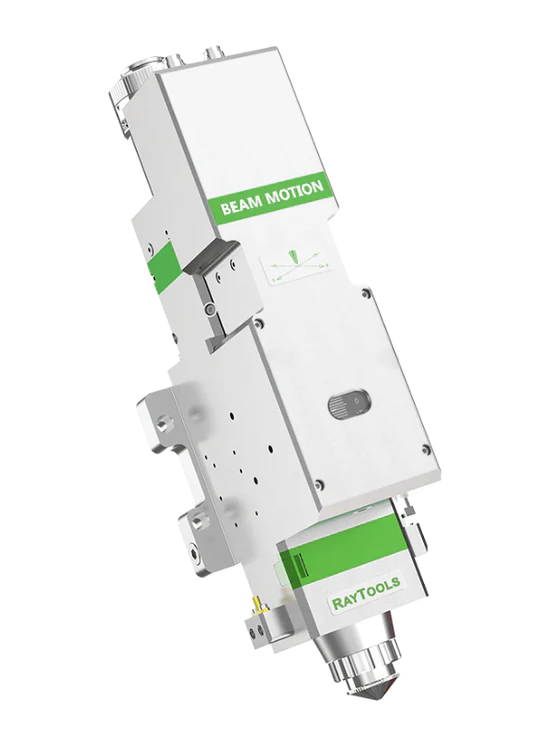

The BM111 series represents auto-focusing cutting heads for fiber lasers, brought to the market by Switzerland's RAYTOOLS AG in 2017. These cutting heads come integrated with internal servo motor drive units. These units employ a linear mechanism to automatically adjust the focusing lens position over a span of approximately 22mm. Users can program the head for continuous focus adjustment, enabling swift perforation of thick plates and automated cutting across plates of varied thickness and materials. The product line can be outfitted with D30 composite lens groups for beam integration. They feature a diverse interface configuration, making them adaptable to different fiber lasers. The design is optimized for optics and is water-cooled, ensuring prolonged, high-powered, and stable operation.
